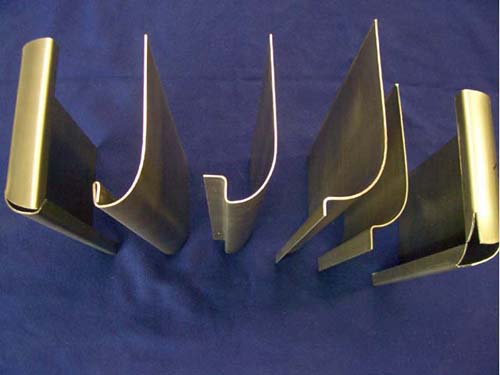

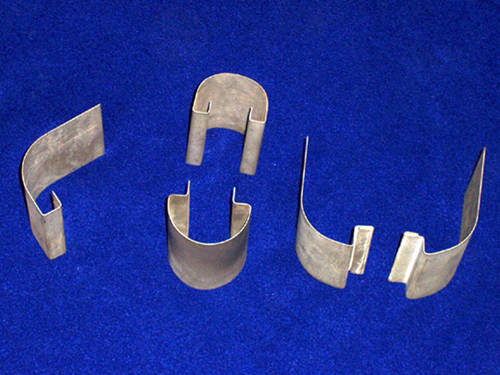

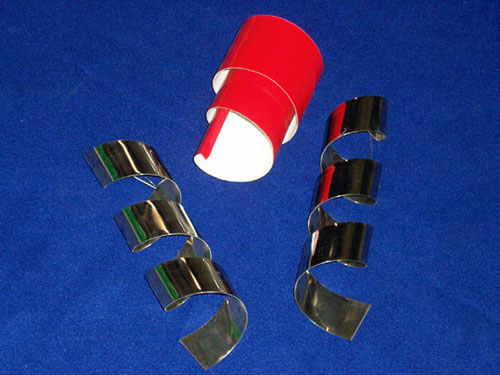

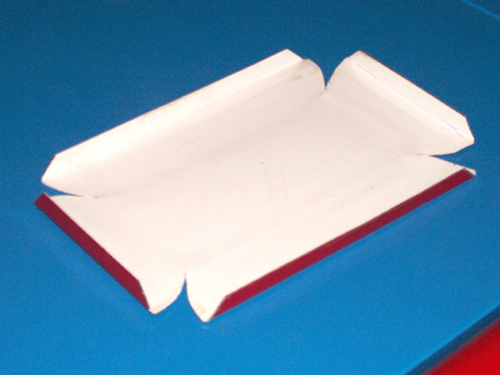

See the samples of multiroll usage
Visit some of our sponsors
Contact Multiroll for more information
Our award from the ET Foundation

Rollfab Inc. Introduces the Multiroll
Sheet Metal Radius Hand Brake

Over 25 Years of sheet metal education has led Christopher Daniel Jeske to invent and develop the Multiroll sheet metal radius handbrake. This machine has no moving parts and doesn’t need electricity to run. You simply pull the metal over the die to form your desired degree on the one inch radius die. This invention was given the First Place Award in the ET Foundation's Commercial/Industrial/Consumer category in 2006. See the full article below.

ET Foundation

First Place Commercial/Industrial/Consumer:
Multiroll Radius Sheet-Metal Hand Brake

Submitted by Christopher Daniel Jeske, President of Rollfab, Inc.
First place winner in the Commercial/Industrial/Consumer category was Christopher Daniel Jeske, President of Rollfab, Inc. in Tampa, Florida, for the Multiroll radius sheet-metal hand brake. Jeske invented and developed the irst Place commercial/Industrial/ConsumerMultiroll after 25 years in sheet-metal education. Made of 6005 aluminum alloy, the product is currently in production, extruded by Almag Aluminum in Brampton, Ontario, an AEC member. "The machine has no moving parts and does not need electricity to run," according to the company's website. "You simply pull the metal over the die to form your desired degree on the one-inch radius die." Target markets for this product include architectural, custom automotive and motorcycle parts, arts and crafts," and whatever anyone else can dream of," stated Jeske. The extrusion caught the judge's attention due to the challenging offset void and difficult T-slot design. "If the die is not designed properly, the extrusion could cause a high degree of die breakage," commented competition judge Angel Rosario.

The Multiroll sheet metal radius bender is so easy to use. It comes with a pattern kit made of paper so you can make a set out of thin sheet metal. Keep these patterns handy, because you will use them over and over again as you dream, design and fabricate your ongoing projects. When creating your new piece of art, You will find that the Multiroll tool will amaze you as you create some of the most unique fabricated parts or jobs.

The Multiroll is made of 6005 aluminum. It has an angle shaped base which is 61" long and 2x3x3/16. The multiroll die is installed onto the "L" base from the ends and the small beads on the "L" hold the multiroll die from coming off when forming sheet metal over it. The "J" die is for reverse flange bending when installed into the "T" slot on the multiroll die which is also installed from the ends to keep it in place when forming reverse flange or no flange radius bends.

The multiroll die is now available in a 120" straight radius brake and a 60" box and pan radius brake. The die sizes are:2",3",4",6", 8",10",12", and 15".The Multiroll hand brake can be used in a wide variety of fabrication industries such as; automotive, motorcycle, arts & crafts, and architectural applications. It is a LIGHT GAUGE fabrication tool only with a capacity of .050 aluminum and 20 guage mild steel.

THE NEW PROTOTYPES ARE HERE!!

See the TOOLS Page for more information.

video
Click here to watch a video demonstration of the Multiroll™ in action!

5ft assembled-die







paypalbtn

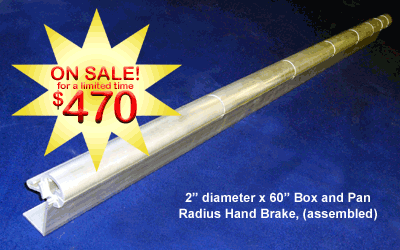

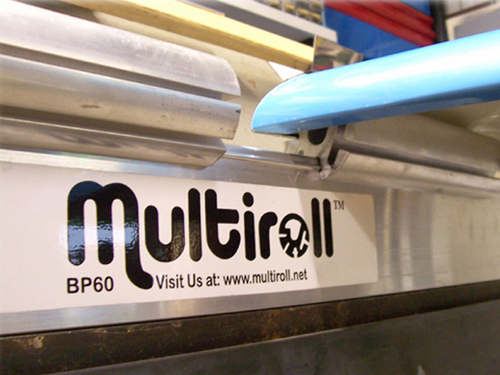

2" Diameter x 60" Box and Pan Radius Hand Brake

This brake comes unassembled and ships in a 4" x 4" box. It is the only 60" brake that weighs only 20 lbs. This brake can be set up anywhere! Quickly and easily create beautiful curves with this multi-length tool. You can break it down to any desired size that your project requires as long as it is mounted securely to a table, truck, or other stable surface. Order your own Multiroll Radius Hand Brake Today. Happy Bending!


122ft brake




122ftbrake-together

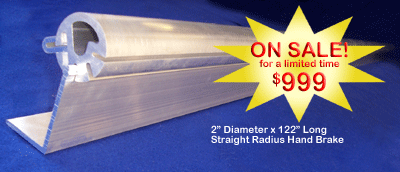

2" Diameter x 122" Long Straight Radius Hand Brake

With this 122" Long Straight Radius Hand Brake, one person can load the one piece onto the angle when you have some means of support at one end while you guide the die onto the angle base. When installed, the "J" die holds the material on the edge to form a no flange radius bend. Create beautiful curves for any automotive, architectural or craft project. You can also slide the Multiroll die partly off the angle base to for a 180 degree roll and coil metal for any art or craft project. Buy your Multiroll Radius Hand Brake today and...
Create the Curves You Have Always Dreamed of!




Recycleable Materials
All of our products are Earth Friendly
& 100% Recycleable
.

The Multiroll Radius Hand Brake is made from 6005 Aluminum with the tensile strength of 6061 Aluminum and is 100% recycleable.
